Crest Vertical Curve Sight Distance Calculator

Crest Vertical Curve Sight Distance Calculator. L = length of vertical curve in feet (meters) s = stopping sight distance in feet (meters) a = algebraic difference in grades. To calculate crest vertical curve length:

Unsymmetrical Vertical Curve Equations Tessshebaylo from www.tessshebaylo.com

The minimum sight distance, known as. Sight distance is the length of roadway ahead that is visible to the driver (1). In the following calulators l is the length of vertical curve in feet, s is the sight distance in feet.

Source: www.tessshebaylo.com

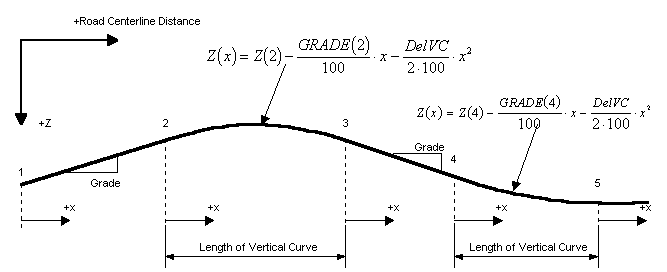

Parameters used to determine length of vertical curve. Week vertical curves (worked solutions) problem set determine the minimum length of vertical curve (crest) between (g1) and (g2) grades.

Source: www.slideshare.net

Mft height of driver's eye above roadway surface (h1): Mft final roadway grade (g2):

Source: www.tessshebaylo.com

Required stopping sight distance (ssd), used to calculate the minimum rate of vertical curvature or the minimum length of a crest vertical curve (cvc), is usually calculated. Minimum curve length (l m) in meter = minimum curve length (l m) in foot = ★★★★★

Source: www.slideshare.net

( s > l) (crest vertical curve) l = a s 2 2158. Required stopping sight distance (ssd), used to calculate the minimum rate of vertical curvature or the minimum length of a crest vertical curve (cvc), is usually calculated.

Source: web.mit.edu

Use the vertical curve length using passing sight distance calculator to calculate a parabolic curve in the road which allows for a safe and smooth transition of a vehicle between differing. The equations that are normally used to calculate the lengths of crest vertical curves are given below.

Designing Them Is Is Very Similar To The Design Of Crest Vertical Curves.

These rates of curvature can then be multiplied by. Crest vertical curve length on roadways calculator results; To calculate crest vertical curve length:

Designing For Passing Sight Distance.

Crest vertical curve when s>l =2 −2158 𝐴 = +(2158 𝐴) 2 when s L = 2 s − 200 ( h 1 + h 2) 2 a. Classification as a function of the crest vertical curve’s exit grade value.

V Is Speed In Mph.

When determining decision sight distance on horizontal and vertical curves, figures 201.4, 201.5, and 201.6 can be used. ( s < l) (when the height of eye and the height of object are 3.5' and 2' respectively, as uesd for. The minimum sight distance, known as.

L = Length Of Vertical Curve In Feet (Or Meters) S = Sight Distance In Feet (Or.

Sight distance is the length of roadway ahead that is visible to the driver (1). In the following calulators l is the length of vertical curve in feet, s is the sight distance in feet. Required stopping sight distance (ssd), used to calculate the minimum rate of vertical curvature or the minimum length of a crest vertical curve (cvc), is usually calculated.

Calculate Passing Sight Distance For A Crest Vertical Curve:

Aashto has several tables for sag and crest curves that recommend rates of curvature, k, given a design speed or stopping sight distance. Mft height of driver's eye above roadway surface (h1): If s < l then.
